SharperDrills™ DGS-01 Precision Grinder

SharperDrills™ DGS-01 Precision Grinder

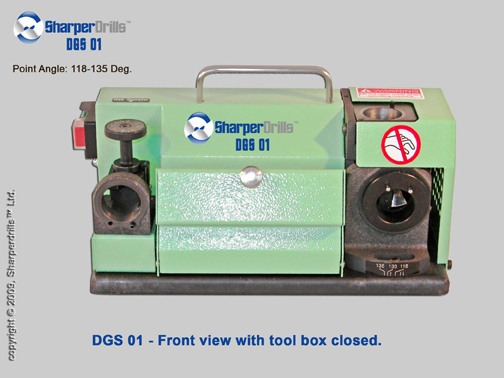

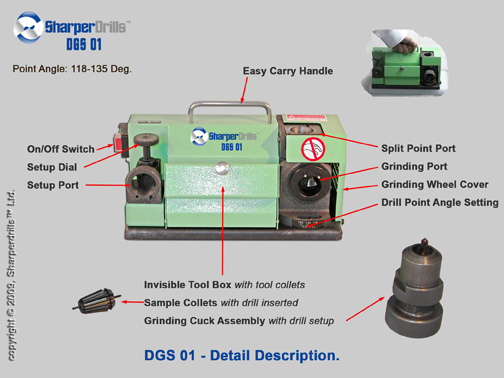

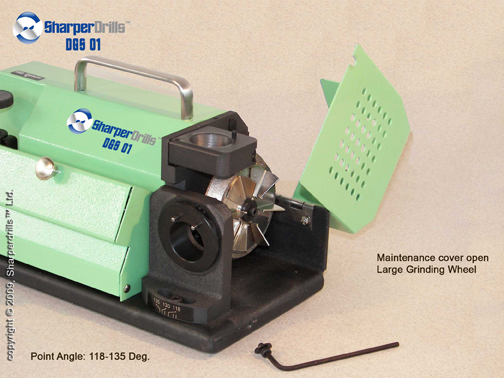

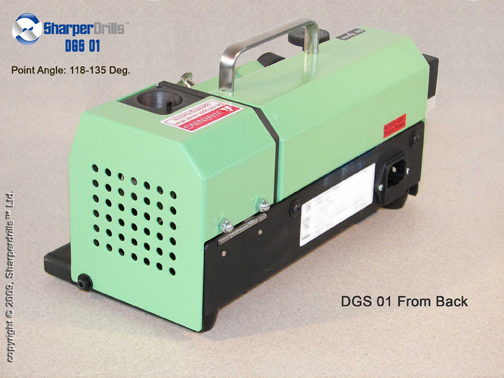

DGS-01 Drill Sharpener Tool Box ClosedDGS-01 Drill Sharpener DetailsDGS-01 Drill Sharpener Back SideDGS-01 Drill Sharpener Grinding Wheel
Click to enlarge image(s)
If you want the sharper point for the job, but don't want to become a tool and cutter grinding expert, the SHARPERDRILLS™ DGS-01 sharpener is for you. It sharpens a wide variety of sizes and styles of drills and other tools with ease and accuracy. Imagine, for the price of a few hundred drills, you can sharpen in house for only pennies a drill. Using our patented design with precision collets for clamping with best drill alignment, you can be a sharpening expert with a few minutes of instructions. The GS-01 drill sharpener is a heavy duty, rock solid, tool grinder, capable of sharpening all day, every day with minimal cleaning and maintenance. The hand-carrying, all metal design integrates an invisible toolbox for the collets and helps you to keep your workspace organized.

Drill Diameter Size Range: 2-13mm or #47 (0.08") to 1/2"
Drill Point type: standard and split-point by X-thinning
Drill Point Range: 118 to 135 deg.
Drill Diameter Range 2mm to 13mm or (#47 size) 0.08inch to 0.5 inch
Drill Point Angle Range 118 to 135 degree
Power Supply Single Phase 120V / 50/60 cycle. (As option, single phase 220V/50 cycle.)
Motor speed 5300 RPM
Grinding Wheel (standard) CBN #200
Type of Web Thinning X-Thinning Split Point
Net Weight 7 kg / 15.4 lbs.
Machine Dimension: (length x width x heigth) 11 x 5.1/4 x 6.1/8 inch

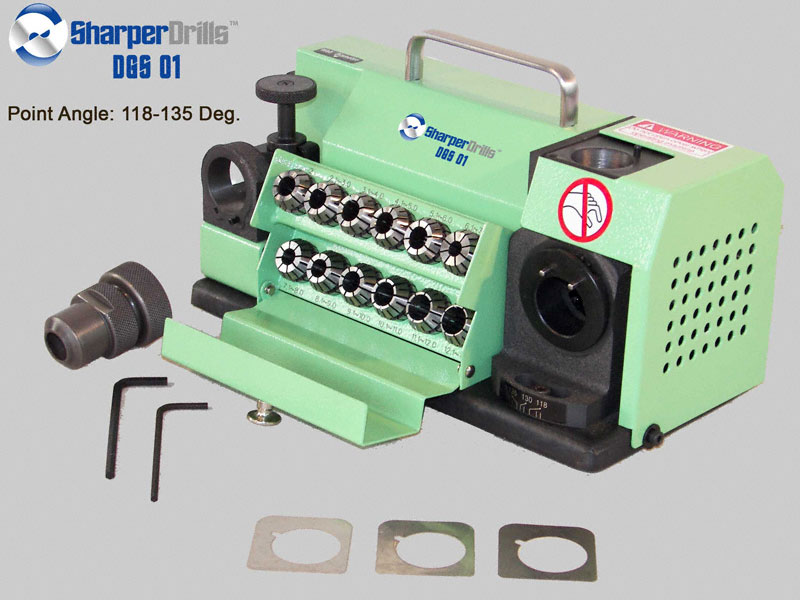

Standard Accesories Collet Holder and Nut Assembly, Allen wrenches: 4mm and 5mm,ER Collets 12each, Spacer 3 each.
Design All Metal Construction with casting base components.
Features Benefits
Compact and Rigid, All Metal Design Long lifetime protects your investment while providing high quality grinding results for years.
Collet Drill Clamping System Better, true running drills produce round holes, exact in size, while increasing tool life.
Split-Point via X-Thinning Less drill pressure to start hole, and lowers HP for drilling. Increases tool life and mostly shortens drilling cycle.
Adjustable Point Angle Applicable to wide range of drills for perfect drilling with various materials. Optional diamont plated wheels for sharpening solid carbide drills.
Carrying Handle and Invisible Toolbox Transportable, easy to set up. Quickly to set up and very easy to use with everything at hand.
Total Weight of about 14lbs. Secure setting, extremely user friendly and reliable.
Energy Efficient Quick start, hIgh torque motor rated to run up to one hour continious. Run only when sharpening to safe the planet.
Attractive Price Quick Payback by extending the overall tool life and eliminating time and money for trips to the store.
